The Ultimate Fishing
Aresenal

An MFD series engineered for anglers who demand more.

From the first cast to the final haul, NavNet TZtouchXL gives you a cutting-edge advantage on the water with powerful, purpose-built features designed specifically for sportfishing. This next-generation series raises the bar with groundbreaking technology never before seen in recreational marine electronics.

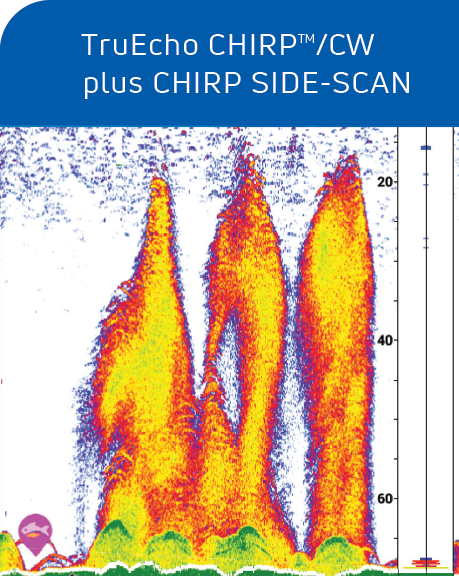

Unleash Built-In Fish Finding Power

The TZT10X, TZT13X, and TZT16X models come equipped with a built-in 1kW TruEcho CHIRP™ or CW Fish Finder and CHIRP Side-Scan at 230kHz or 455kHz, revealing fish and structure with razor-sharp detail from port to starboard.

Scalable Systems for Deep-Water Dominance

The larger TZT22X, TZT24X, and black box TZTBBX offer full control across the entire NavNet network. Add your choice of high-powered Fish Finders and tailor your setup for deep dropping, trolling, or any offshore pursuit.

And for the most serious of anglers, NavNet TZtouchXL delivers full control of the CSH10 360° Scanning Sonar, allowing you to instantly scan the underwater world for an incredible 900 meters all around your vessel!

Go Deep

The powerful internal 1kW dual channel TruEcho CHIRP™ Fish Finder* built into the TZT10X/13X/16X is designed to operate across a wide range of frequencies, and is more than enough to meet the needs of most fishermen. But for those who want to go even deeper, the 2kW/3kW DFF3-UHD TruEcho CHIRP™ Network Fish Finder delivers the power to penetrate the deepest waters and find your catch with Low, Medium, or High frequency CHIRP bands from 25-242 kHz. Plus, with the BT-5 Booster Box, you can boost that output power up to 5 or 10kW to take advantage of high-power transducer options that will unveil the deepest waters like you’ve never experienced before.

TZT16X-DFF3-UHD-left

Card-Graphic-CHIRP-Fish-Finder2

The DFF3-UHD is designed to operate over a wide range of frequencies utilizing 1, 2, & 3 kW transducers to deliver advancements in signal clarity and target definition in deep water.

Display single or dual frequency Fish Finder images simultaneously on the screen
Locate a target on the display and access Fish-It & Drift-It
Post Processing Gain Control updates gain on new & past echoes

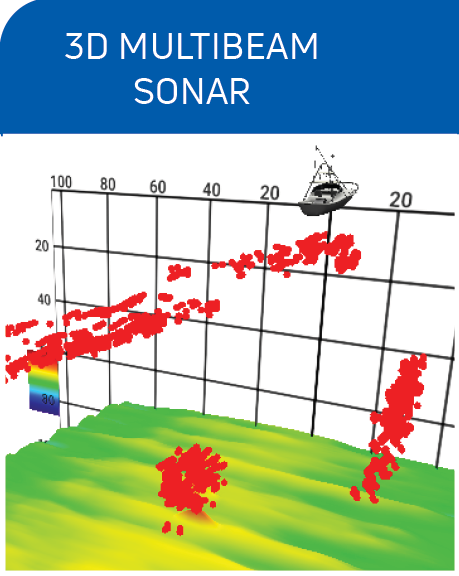

Card-Graphic-3D-Sonar2

The DFF3D lets you visualize the underwater surroundings of your vessel and pinpoint fish with precision.

Instantly see distribution of bait fish, predator fish, and water column conditions with the Cross Section display
Visualize the seafloor in stunning 3D
Access Fish-It & Drift-It with one tap
Better understanding of fish target depths with the Triple Beam display

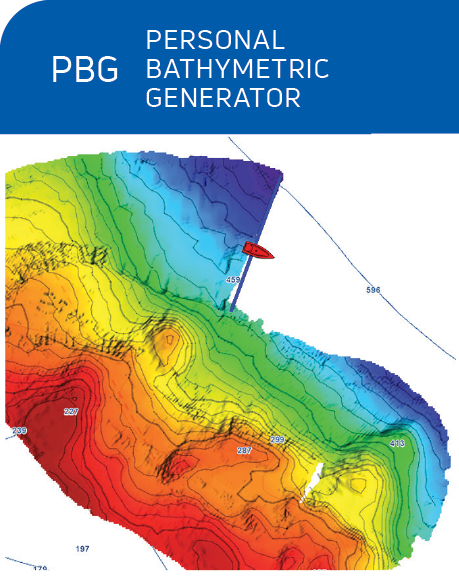

Card-Graphic-PBG

Map the seafloor by creating your own shaded relief charts and leverage your new PBG data like never before.

Auto-navigate contour lines with Follow-It
Generate highly accurate spot soundings with precise depth contour lines
Automatically save recorded information to your MFD to access anytime
Build your own realistic 3D charts

Card-Graphic-CHIRP-Side-Scan

Visualize underwater conditions and reveal the shape of fish targets and fish-hoarding structure in rich detail.

Clearly displays the shape of structure as a high definition image port and starboard
455 kHz or 225 kHz CHIRP
Available with Thru-Hull, Paired, or Transom Mount Transducers

* Internal Fish Finder not included in TZT22X/TZT24X/TZTBBX; available when networked to TZT10X/13X/16X

Furuno has a wide range of matched, high-performance transducers for virtually every type and size of boat. While you don't need to know how a transducer works to get the most out of your Fish Finder, a basic understanding of the variables goes a long way toward selecting the right transducer for your needs.

Click here to learn about marine transducers and what makes them tick.

multi_beam_icon

TZT16X-DFF3D

Normal down-sounding Fish Finders have a beam angle of 40˚ or less. But with the DFF3D Multibeam Sonar, you'll see a 120-degree swath, offering seafloor coverage up to 3X water depth. Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). When you match this with the DFF3-UHD TruEcho CHIRP^TM Fish Finder, you’ll have the ultimate fishing machine!

The DFF3D's versatile operating modes give you a better understanding of fish targets than any normal Fish Finder can deliver. The 3D sounder history provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons - useful when selecting a fishing hot spot or assessing the seabed condition. Triple-Beam mode tells you not only the depth but also the direction (port/down/starboard) of fish targets. Cross Section display the real-time sea column echo in a 120˚ swath, and Side-Scan displays the shape and structure of targets both port and starboard.

DFF3D-3D-History

DFF3D-Triple-Beam

DFF3D-Cross-Section

PBG_Logo_black

Chart Everything

Quickly create your own PBG (Personal Bathymetric Generator) Shaded Relief Maps using TZtouchXL and the DFF3D. Bottom images are drawn with shaded relief, depth contours, and variable colors, making it easy to identify hidden structure and ridges that hold fish in a simple, easy-to-interpret presentation. Multiple color palettes are available, including the ability to show contour lines only. And, your TZtouchXL MFD has enough storage for a lifetime of charts.

TZT22X-PBG

The Perfect Drift, Every Time

Tapping a location on the chart, such as a pinnacle, wreck, charted artificial reef, or even a hot fishing spot on the Fish Finder or DFF3D Multibeam Sonar screen, lets you make a temporary "fishing go-to point." The Fish-It point creates dynamic range rings, a course line between the point and the boat, and a temporary track line to the spot.

Once a Fish-It point has been selected, the Drift-It feature can set the perfect drift. Drift-It will save you time and fuel by eliminating the guesswork in determining vessel drift in challenging wind and current conditions.

TZT10X_left_FIDI

TZT22X_right_Follow-It

Follow-It

Leverage your recorded PBG data by creating a constant depth route from the PBG map, allowing you to select Follow-It from the menu and send it to your NAVpilot Autopilot. By following specific depth contours, you can keep your baits at the same level as the fish while trolling without constantly adjusting the reels. Having your bait at the correct depth is critical to catching fish in areas where tides and currents flow along structure where gamefish concentrate.

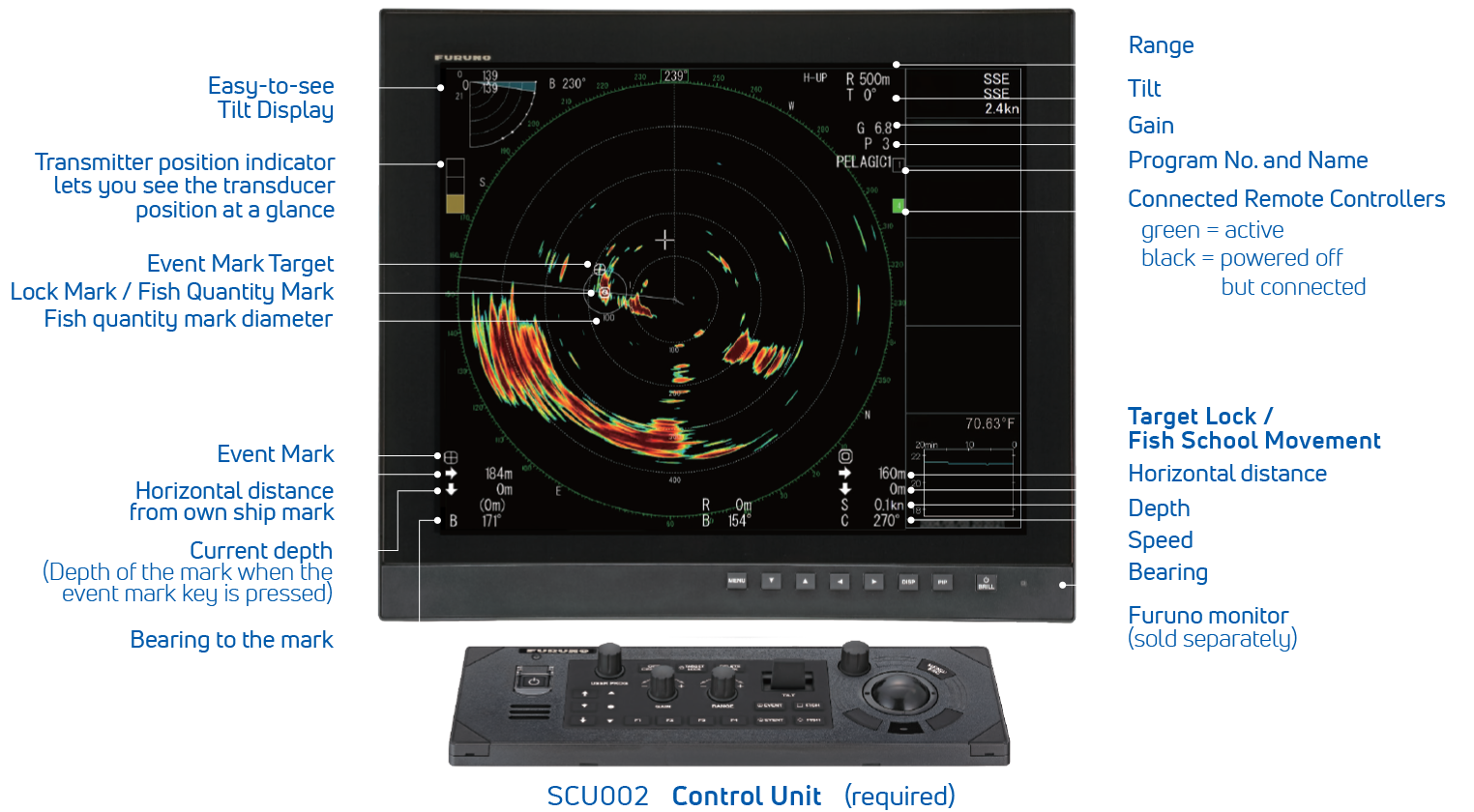

CSH10-UI2

Furuno’s CSH10 360° Scanning Sonar is fully compatible with NavNet TZtouchXL. Once connected, the CSH10 is recognized as a native sensor, automatically unlocking a dedicated Sonar display on the MFD. Easily control CSH10 settings and adjust key parameters like tilt and gain directly from your TZtouchXL MFD while you monitor system status and create event marks to track important underwater targets.

Unlike traditional searchlight sonars, the CSH10 scans the entire area around your boat in real-time, giving you immediate, crystal-clear views of fast-moving targets like bonito and tuna. Operating at 85 kHz with a razor-sharp beam width, the CSH10 is optimized to detect surface and near-surface schools when seconds count.

With Furuno's unique Sonar Overlay, you can display real-time Sonar echoes directly on your chart, allowing you to see fish targets in relation to charted objects, structure, and underwater topography. Understanding where fish are located relative to wrecks, reefs, drop-offs, and other key underwater features enhances situational awareness and helps you make more informed decisions when fishing or navigating complex environments. There's even an optional Bluetooth Remote, the SCU001, so you can easily adjust your range, tilt angle, and sensitivity from a distance.

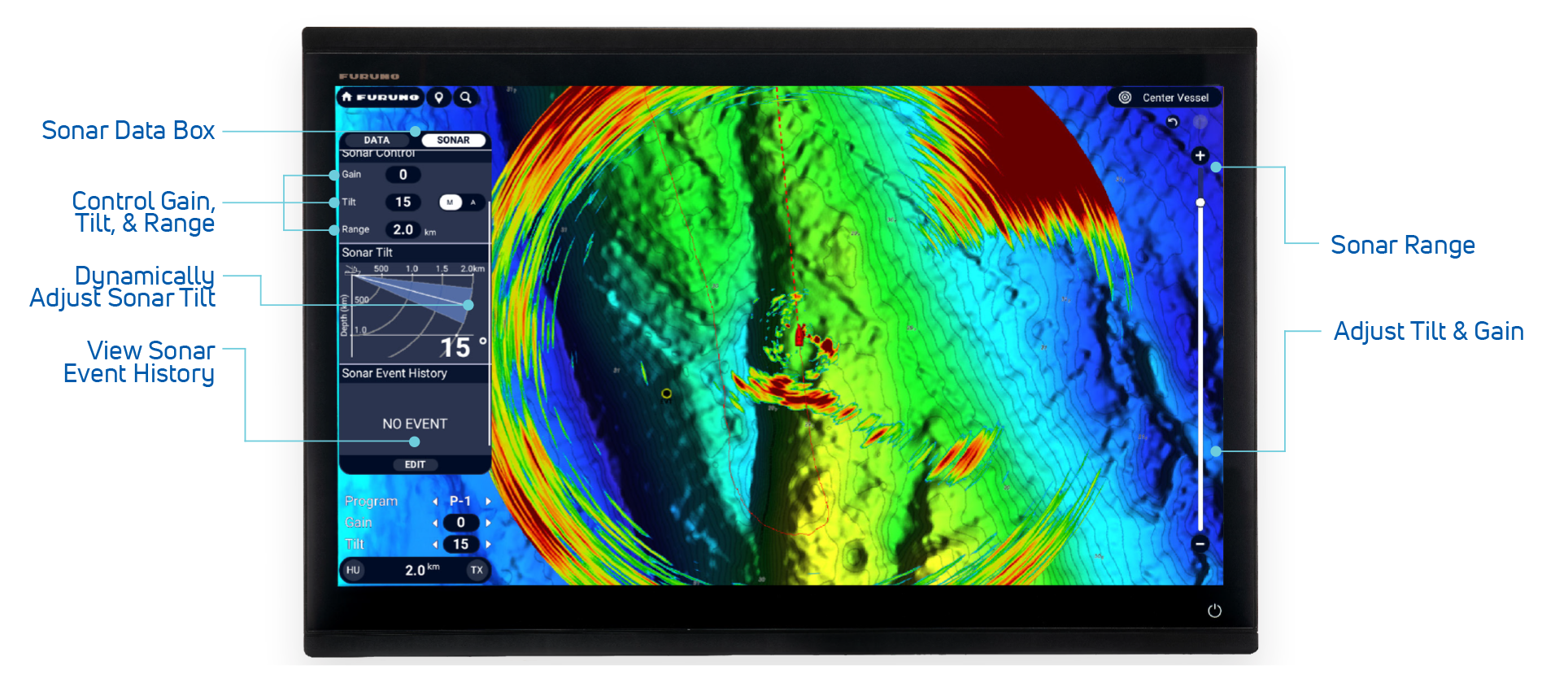

TZTXL-CSH10-Interface

TZ MAPS

TZ MAPS cartography on NavNet TZtouchXL presents the most advanced and capable electronics charts in the world. A single, affordable purchase made directly from the MFD unlocks incredible charts with coverage areas that exceed other premium chart offerings. You have to see it to believe it, but don’t take our word for it – see for yourself.

TZ MAPS delivers the best bottom data available, displayed dynamically and intuitively in color with contour lines configurable down to 3" resolution, so you can focus precisely and accurately.

AI Routing with TZ MAPS creates instant point-to-point routes, intelligently planning a safe and efficient path through channels, marina entrances, inlets, and more using your set boat draft, chart data, and other safety parameters.

Terrain Shading

Easily control the intensity of relief shading in 2D or 3D, adjusting chart contrast according to slope to improve your perception of underwater terrain.

Community Maps

TZ Maps allows you to add and edit custom objects to your charts. Modifications you make to charted objects can be submitted for other users to vote on. If the feedback is positive, the update is validated and made available to the entire community. You can even take photos of objects such as lighthouses, buoys, and reefs, and add useful comments (ex: “dangerous rock at low tide”).

The updates you receive come from tens of thousands of active TimeZero community participants. Community-sourced chart information resides on its own chart layer, which can be easily displayed or hidden whenever you choose.

Simple Updates

Easily update your charts, and set your favorites to update automatically, keeping them current with the freshest data. Updates are free for one year, and you can continue to receive updates with a small annual subscription.

TZ MAPS Store

With an Internet connection, you can purchase charts quickly and easily directly from your MFD! Purchasing charts from the MFD also unlocks them on the TZ iBoat app for free!

Furuno Features
That Perform
When It Counts

BDS

Bottom Discrimination

Bottom Discrimination indicates if the seafloor is made up of sand, mud, gravel, or rocks - valuable information that helps you locate rich fishing hot spots and boost your catch of the day.

* Bottom Discrimination feature works only with specific transducers. Check to ensure your transducer is compatible.

BDS-Screen

ACCU-FISH

ACCU-FISH

ACCU-FISH™ is a proprietary fish size assessment function that assesses the size of individual fish size. Echo returns are evaluated based on strength and turned into fish size display on the screen. ACCU-FISH™ can detect fish size from about 4 inches (10 cm) to 6.5 feet (199 cm), in depths of about 6 feet (2 m) to over 325 feet (100 m).

In some instances, fish size indicated on the Fish Finder may differ from actual size. Please read the operator's manual carefully before using this feature.

ACCU-FISH-Screen

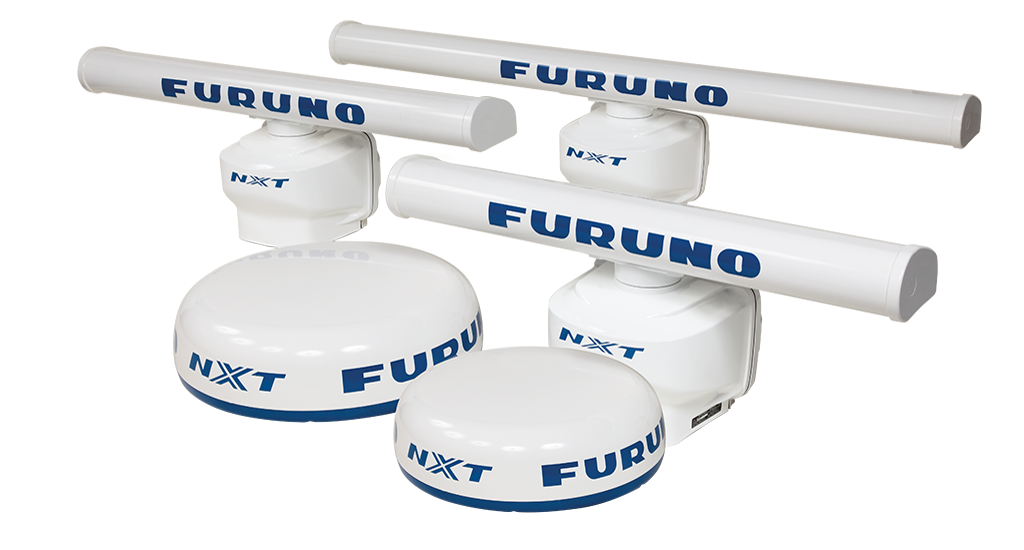

NXT-Radar-Family

Bird-Tracking Radars

Solid-State NXT and traditional X-Class Magnetron Radars offer the most powerful detection capabilities on the water in compact Radome or Open Array configurations.

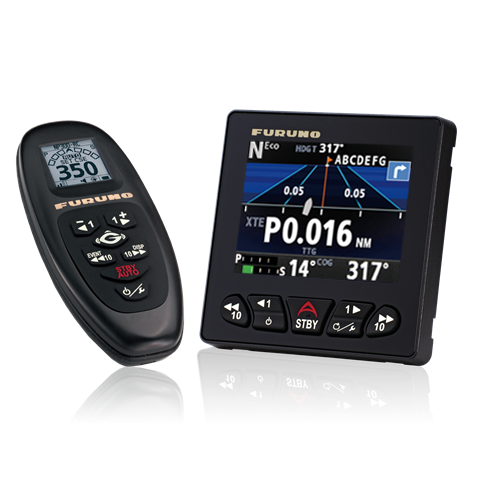

NavPilot 300

NavPilot Autopilots

Achieve precise course control from slow trolling to speeds well over 60 knots! The NavPilot series of 300, 711C, and 1000 Autopilots equip any vessel to maneuver through the water with the guidance of Furuno's exclusive adaptive learning technology, providing unmatched performance.
